LABEL FORM HELP
Label form is 1 of 3 very import form (input form, report form and label form).
If report form used list more record in table report.
Label form used display 1 record (example invoice, tiket, receipt, curriculum vitae....)
Label form created when modify structure table database.
Every datatable consists max 10 label form. It is html tags.
It look like payment, invoice, ...
To create new or modify label form: - Choose menu [Tools/Config]. When config dialog showed turn Server on and check Debug server mode.
- Next choose menu [Tools/Monitor server]. When web server dialog turn webser on, and check Zoom in, to minimize monitor server.
- After turn on web server. You can do next step.
- Open a data table.

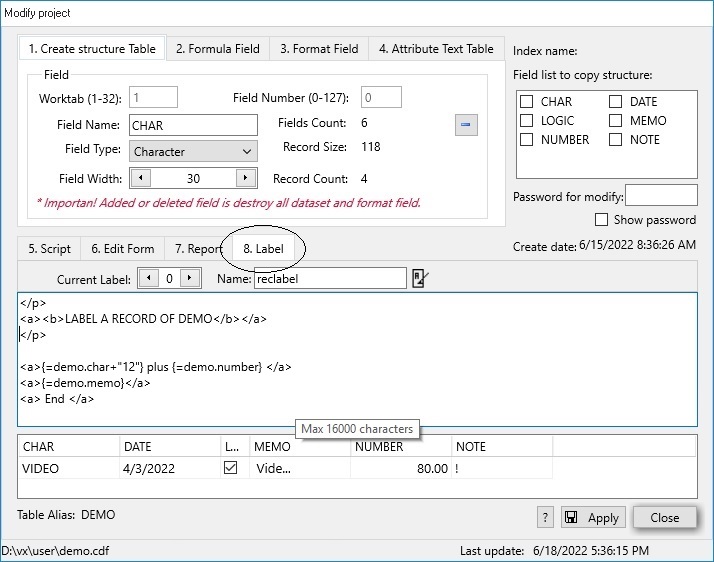

- Choose menu : [File/Modify project]. When modify dialog showed, select Label tab.
In design label form, you can:
- Create new label form.
- Modify label form.
- Preview label form like webpage.
In Design dialog. You can insert : Frame Table, Links, Symbols, Text or Zoom Out by click right mouse button to call popupmenu:
Example, default label form:
Simple Label
<=char+"12"> or {=char+"12"}
To create variable
<@num=2> or {@num=2}
End
Label form used to get database from server and display result on remote client.

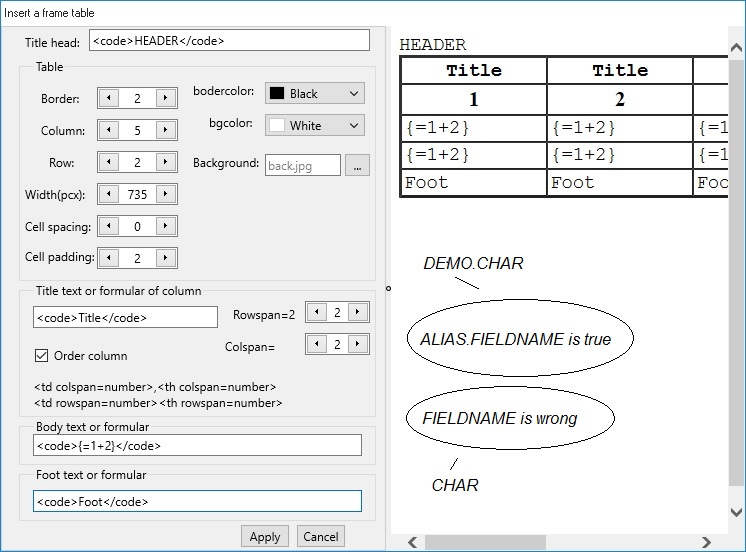

- You can design frame table by click button insert a label [frame table].

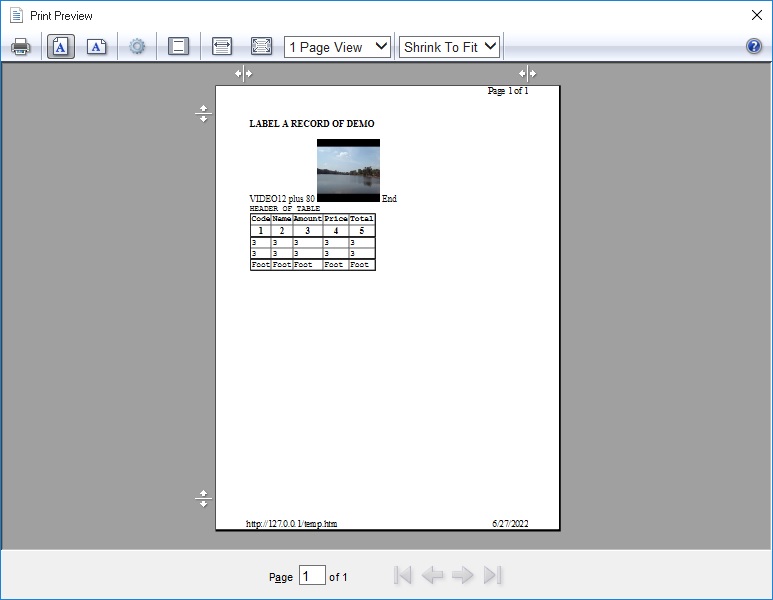

- Print preview label form.
Viewer area of Label Form is web browser. You click right button mouse in viewer area to call popmenu.
Choose [Print preview...] to view design.

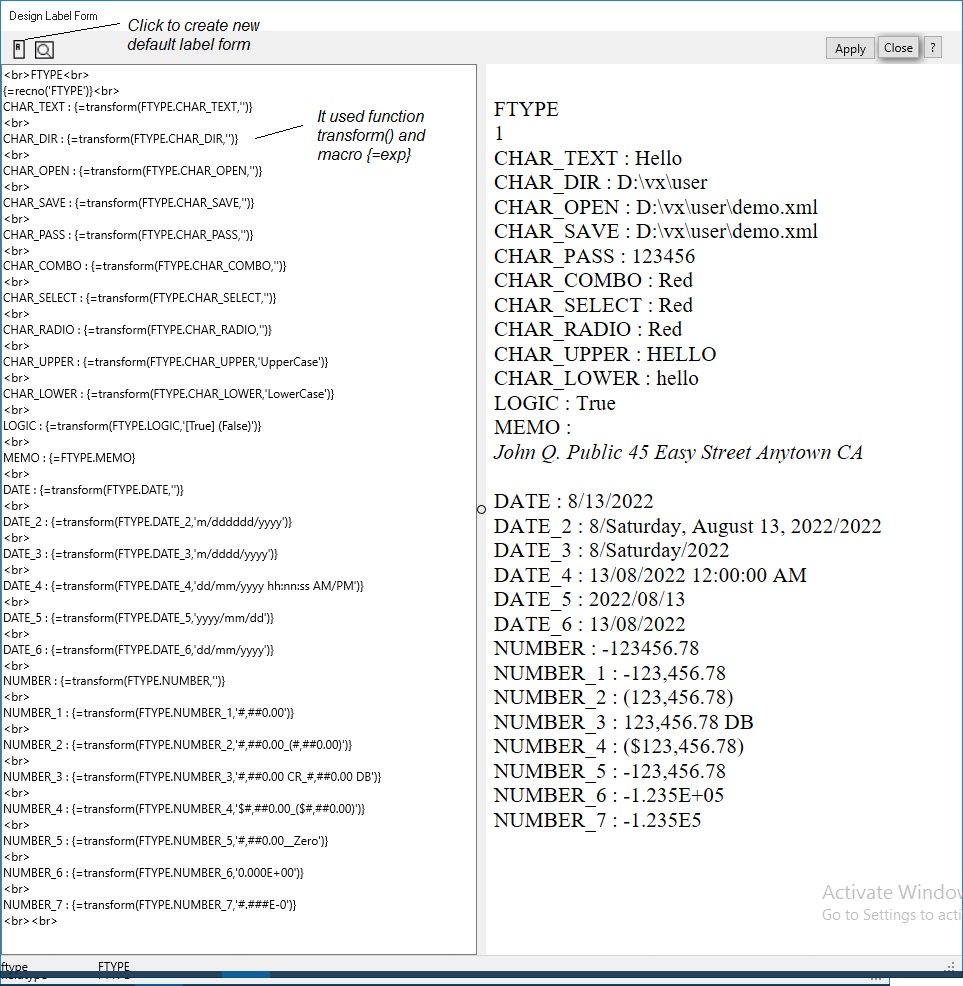

Create a New Default Label Form
This is simple example used function TRANSFOR() to get data from database table.
- Open (1,"user\ftype.cdf","ftype")- Next choose button create New Default Label. It automat created label form. See bellow figura:

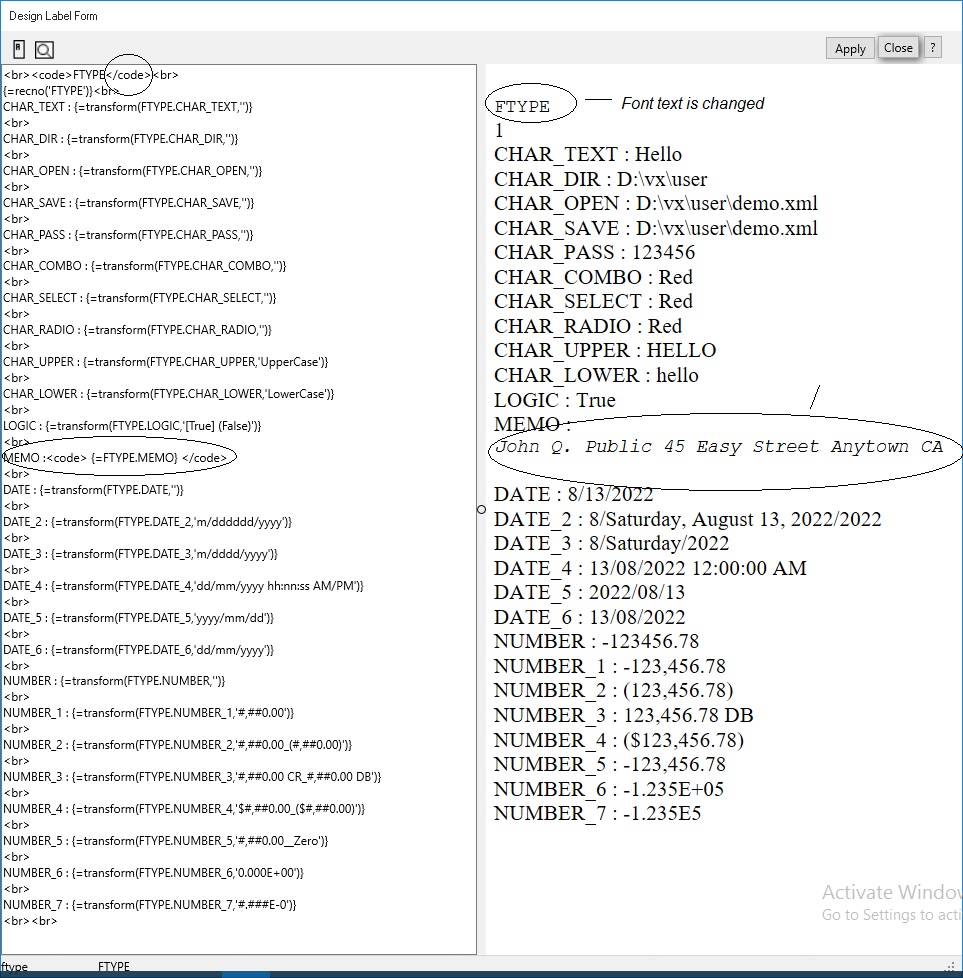

You can insert html code to change font, like: <code> ... </code>
- You can use any html code. Example tag <div>...</div> to create box.
- After modify you can
+ Click [Apply] button to write label form to convert html code and write it into table.
+ Click [Close] button to exit and not write.
* When finish. You need [Apply] to write modify project into disk.
View more...
Understand uses program in VX+
a example for use Label form to design Payroll
- To create label variable and macro function to asign value for start value, you use macro expression int tag HEAD, like:
- {@VAR=0}
- {@[asign expression]}, like: {@VAR=VAR+1} VAR plus 1
- {=[condision]}, like: {IIF(2>1,1,2)} condition expression
